From React Health | Item #: Model SOC5100
❮
❯

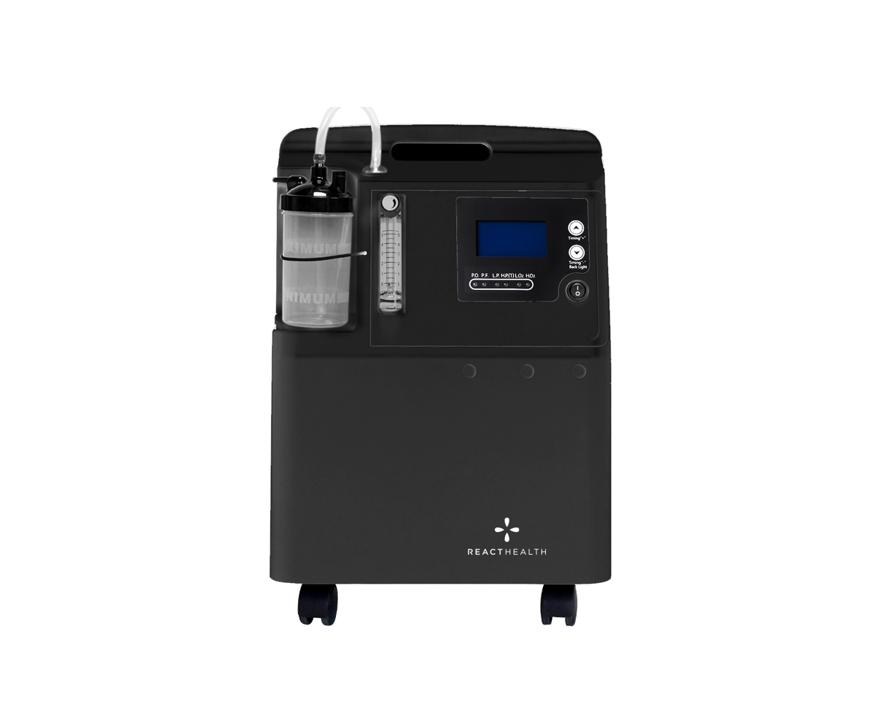

PHOENIX™ 5LCompact, lightweight, and quiet design for discreet, non-intrusive therapy.Low power consumption helps reduce costs to support budget-conscious care.Integrated internal fire break valve for added safety. View more
PHOENIX™ 5L
Designed with your business in mind.
Reliable performance with patented air separation control system.
Low running temperatures reduce wear on valves and sieve beds to extend life.
Intelligent design with air intake from high on the side and exhaust out the bottom helps prevent recirculation of purged gas.
Easy access to flowmeter and resettable circuit breaker.
SERVICEABILITY
Easy access to internal components by removing just 5 screws — unit remains upright during service.
Operable without the shroud to simplify troubleshooting.
Comprehensive troubleshooting guide designed to minimize repair time and ensure only required parts are replaced.
PHOENIX 5 ALARMS
Power Supply Failure
Start-Up Failure
Low and High Pressure
Low Purity
High Temperature
Low Flow
Power Loss
Spcifications
| Prod Spec | Prod Spec Value |
|---|---|
| Weight | 35 pounds |
| Flow Rate | 0.5 - 5.0 L/min |
| Oxygen Concentration | 93% +/- 3% |
| Rated Power | 328W |
| Sound pressure level dBA | <49.5 dBA @ 3LPM |
| Device Dimensions (L x W x H) | 20 x 13.7 x 11 inches |
| Voltage | AC 120V / 60 |
